TM5100 Portable Gaussmeter Digital Magnetic Field Meter 5%/2%/1% Accuracy
Basic accuracy:±5%/±2% /±1% Please tell us which one do you want.
TM5100 is a portable, multi-functional magnetic field measuring instrument, equipped with a high-sensitivity, low-drift Hall sensor, and applied advanced digital signal processing technology, suitable for measuring the surface magnetic field of permanent magnetic materials and the remanence of mechanical parts , DC constant magnetic field, magnetic separator or iron remover, etc. It can be used as a basic magnetic parameter measuring instrument for magnetic material manufacturers and application units, machinery manufacturing enterprises, university scientific research units, etc.

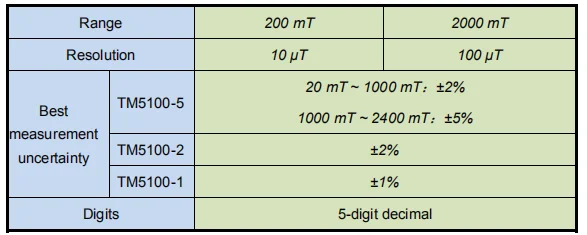

- Magnetic field measurement: up to 2400 mT, automatic range switching,measurement uncertainty can be selected from 1, 2, and 5.
- Magnetic field polarity display: directly display the N / S magnetism of the measured magnetic field.
- One-key unit switching: The value can be mT (millites), G (gauss), 1 mT = 10 G.
- Maximum value retention: It is convenient to record the maximum magnetic field value when the magnetic field changes rapidly.
- One-key zeroing function: used to eliminate the influence of zero drift on the measurement before measurement.
- Built-in USB communication interface, convenient for data export or connection to sampling system.
- Small size, light weight, low power consumption, very suitable for carrying to the scene measurement.
- The standard configuration is a radial Hall probe, and an axial Hall probe is also optional to adapt to different measurement scenarios.
General Technical Specifications
- Power supply: 3 AA dry batteries or mini-USB cable power supply.
- Working environment: 0℃ ~ 45℃ , 20% ~ 80% R·H, no condensation.
- Storage environment: -20℃ ~ 70℃ , < 85% R·H, no condensation.
- Instrument size: 160 mm × 90 mm × 40 mm (length × width × depth).
- Weight of the instrument: about 350 g.
- Communication interface: Hall probe input interface, USB interface.
|
