TES-1318 RTD Dual Input Thermometer Sampling Rate 1 time/sec Measuring Range -200~800C
Features
-
Pt 3916/3926/385 RTD standard.
-
7500 DataLogging capacity. (1317)
-
Warning beeper with HI/LO setting.
-
Time setting.
-
MAX / MIN with TIME, MAX-MIN AVG Hold function.
-
ºC / ºF / K User-Selective.
-
Back - Light LCD display.
-

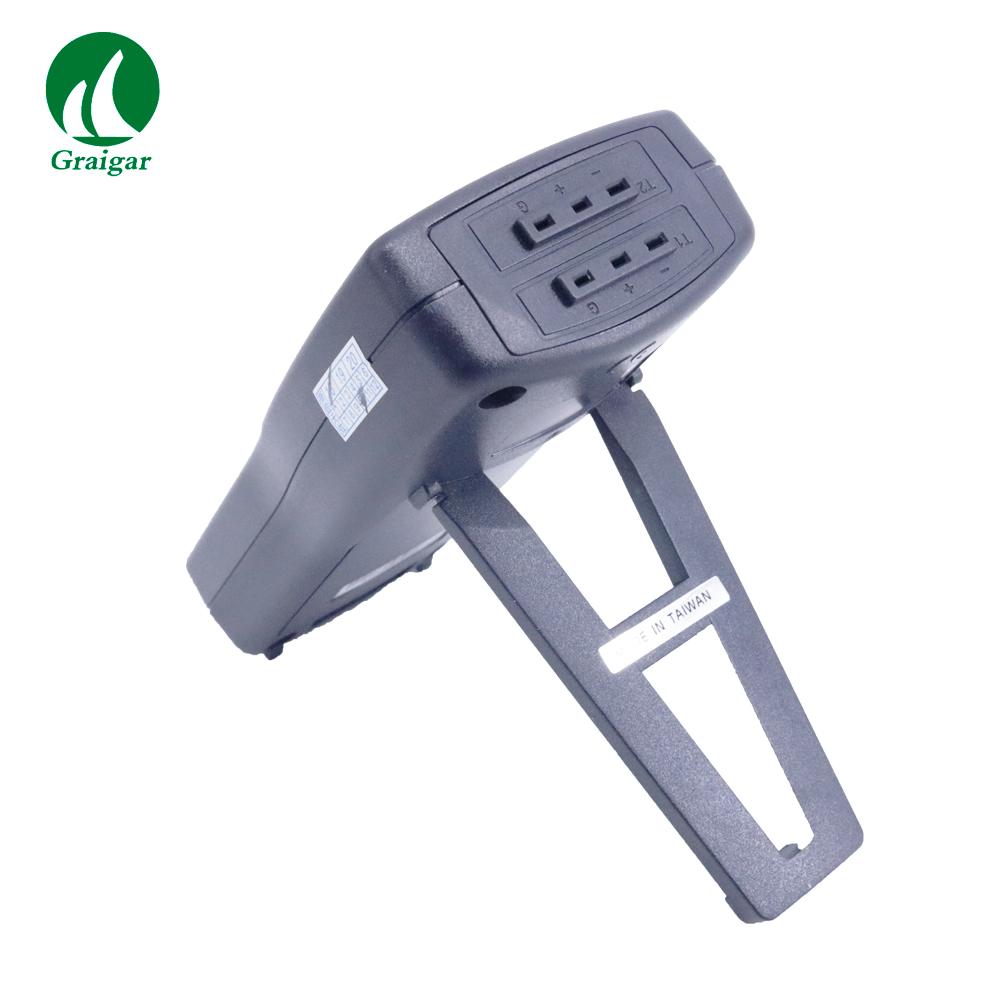

Dual input function T1/T2 temperature display. (1318)
-
-
|
Measuring Range
|
-200ºC to +800ºC (-328ºF to +1472ºF)
|
|
Resolution
|
0.1ºC / 0.1ºF / 0.1K
|
|
Accuracy
|
±(0.05%rdg+0.2ºC) ±(0.05%rdg+0.4ºF)
|
|
Datalogger (1317)
|
7500 reading
|
|
Temperature Coefficient
|
Less that 0.1 times the applicable accuracy specification per ºC(ºF)
|
|
Sampling Rate
|
1 time/sec
|
|
Operating/ Storage Conditions
|
0ºC ~ 40ºC < 80% RH , -10ºC ~ 60ºC < 70%RH
|
|
Power Source
|
6 pcs size AAA Battery(Excluding)
|
|
Battery Life
|
Approx. 300hours. (not including backlight and beeper)
|
|
Size
|
152(L)×72(W)×37(H)mm
|
|
Weight
|
Approx. 300g
|
|
Accessories
|
Instruction manual, Battery
|
