TUF-2000B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc
|
Items
|
Performance &Parameter
|
|
Convertor
|
Principle
|
Transit-time ultrasonic flowmeter
|
|
Accuracy
|
±1%
|
|
Display
|
2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish
|
|
Signal output
|
1way 4-20mA output, electric resistance 0-1K, accuracy0.1%
|
|
1 way OCT pulse output(Pulse width-1000ms, default is 200ms))
|
|
1 way Relay output
|
|
Signal input
|
3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level
|
|
Connect the temperature transducer P100, can finish the heat/energy measurement.
|
|
Data Interface
|
Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS.
|
|
Special Cable
|
Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m
|
|
Pipe Installation Condition
|
Pipe material
|
Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed
|
|
Pipe diameter
|
25-6000mm
|
|
Straight pipe
|
Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump.
|
|
Measuring Medium
|
Type of liquid
|
Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, diesel oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc
|
|
Temperature
|
-30-160℃
|
|
Turbidity
|
No more than 10000ppm and less bubble
|
|
Flow rate
|
0-±7m/s
|
|
Temperature
|
Convertor; -20-60℃; Flow Transducer: -30-160℃
|
|
Humidity
|
Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m
|
|
Working Environment
|
Temperature
|
Convertor; -20-60℃; Flow Transducer: -30-160℃
|
|
Humidity
|
Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m
|
|
Power Supply
|
DC8-36V or AC85-264V(Optional)
|
|
Power Consumption
|
1.5W
|
|
Dimension
|
132*150*85mm(convertor)
|

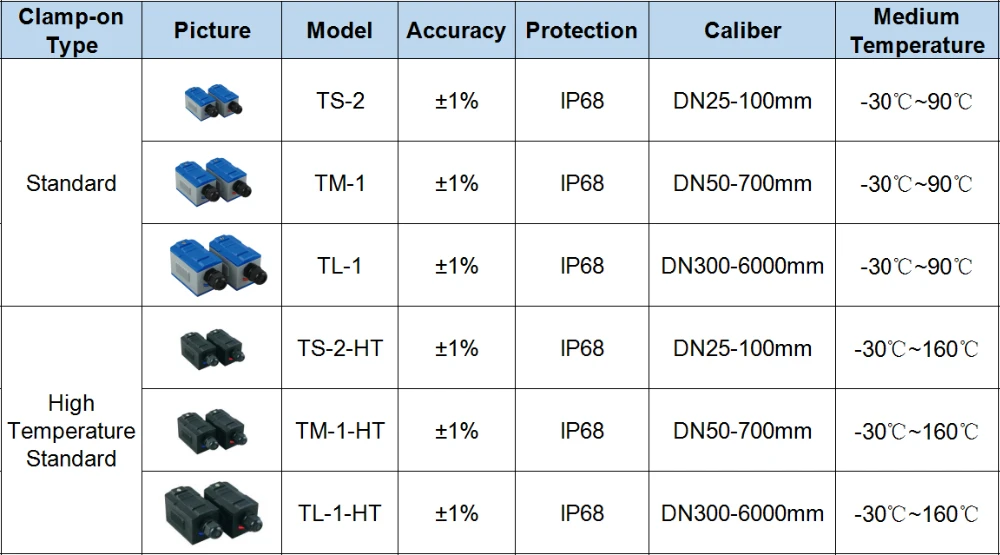

Optional Transducers
Standard Packing:
TUF-2000B Host
Steel Belt
TM-1 Ultrasonic Transducer
2 x 5m Flow Signal CableOptional Transducers:
Ying
|
|
|
|
| Price Terms︰ | EXW |
| Payment Terms︰ | Paypal/Credit Card/TT |
| Packing︰ | Carton |
| Lead Time︰ | 2days |
|
|
