Product Description

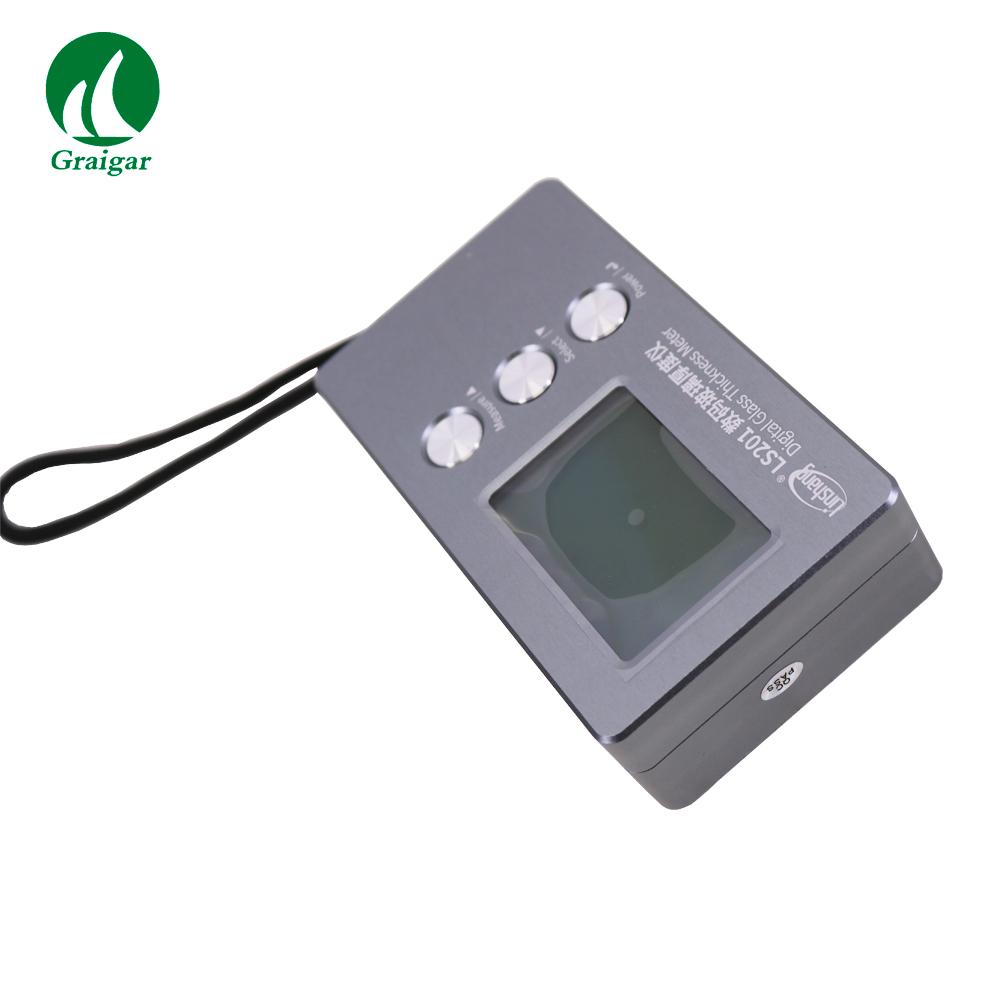

Updated Version LS201 Digital Glass Thickness Meter For Double Glazed Insulated Iaminated Tempered Hollow IG Glass







Linshang LS201 digital glass thickness meter uses the optical reflection principle to measure the glass thickness on one side of the glass. It is especially suitable for the measurement where general measurement tools such as scales or vernier calipers that cannot or are not easy to operate. Such as the thickness measurement of laminated glass and hollow glass. For the measurement of laminated glass, the thickness of multilayer glass and intermediate air layer can also be measured at the same time. The instrument uses CCD detection, liquid crystal display. It also has simple operation, fast and reliable measurement.



Measurement accuracy	± 0.1mm
Measurement range	Glass thickness 70mm,air layer thickness 45mm
Weight	330g
Battery	4 AAA alkaline dry batteries
Display	240 * 160 dot matrix LCD
Dimension	130mm×72mm×33mm (L*W*H)



1. The digital glass thickness meter can nondestructively test the glass thickness. With laser reflection principle, the glass thickness can be measured on single side of the glass.

2. The accuracy of the glass thickness meter can be 0.1mm.

3.The LS201 digital glass can measure triple glazing, laminated glass and other types of glass.

4.Automatic measurement mode and manual measurement mode can be switched, the instrument can accurately test the thickness of insulating glass of various specifications.

5. In manual mode, we can set the corresponding parameters according to the actual type of glass and get accurate data.

6. The Chinese and English display modes can be switched.

7. The instrument has high-definition large screen with backlight, the data can be read in dark environment.

No.	Description	Quantity	Unit
1	LS201 Digital Glass Thickness Meter	1	pcs
2	User Manual	1	pcs
3	Certificate / warranty card	1	pcs
4	Cloth bag	1	pcs
5	Packing box dimension 25*21*7 cm(L*W*H)	1	pcs

Price Terms︰ EXW shenzhen

Payment Terms︰ Paypal/Credit Card/TT/Western Union

Packing︰ export carton

Lead Time︰ 2 days
