Product Description

S580-EX Temperature and Humidity Data Logger Resolution 0.1C / 0.1%RH







Product Description

This series logger are featured with large LCD display, elegant appearance and hight precision, all the sensors are produced in Switzerland, which assures accuracy and stability. S500 series data logger build-in sound and light alarm function, that will alarm when exceed limit that users set up. In addition,different measuring range up to 100℃ with PT100 sensor.

Feature

•

  Memory for 86000 readings.

•

  Freely selectable measurement cycle from 2 second to 24 hour.

•

  Large LCD diaplay temperature enable to store data and time simultaneously.

•

  Download collected data through USB interface.

•

  Built-in sound & Light alarm ,Temp and Humidity Limits Setting; LED Light Flash When Limits are Exceeded.

•

  Simple operation and can be placed on desk or mounted on wall.

•

  Max and min display function.

•

  Manual deviation calibration.



Model List
Model	S500-TH	S500-EX	S520-TH	S520-EX	S580-TH	S580-EX
Temperature Measurement Range	-20~+70℃	-40~+85℃	-20~+70℃	-40~+85℃	-20~+70℃	-40~+85℃
Temperature Accuracy	±0.5℃		±0.3℃		±0.2℃
Humidity Accuracy	±5%RH		±3%RH		±2%RH
Humidity Measurement Range	0~100%RH
Sensor type	Internal	Enternal with 3 meters cable	Internal	Enternal with 3 meters cable	Internal	Enternal with 3 meters cable
Automatic Recording Capacity	4,3000				8,6000
Sensor quantity	1
Channel	2
Resolution	0.1°C / 0.1%RH
Battery	9V Block Battery *1，9v~12v DC power supply
Logging rate	2s to 24 hours
Dimensions	135mm * 124mm * 35mm(5.31"*4.88"*1.37inch)
LCD size	88mm*55mm (3.46"*2.16")
Weight	330g
Standard Accessories	9V Block Battery, user manual,USB cable, software, screw
Optional Accessories	AC-DC adapter, printer,external sound & light alarm
Certificate	CE,ISO





Edited by Mina

Price Terms︰ EXW

Payment Terms︰ TT/LC/WU/PAYPAL

Packing︰ CARTON

Lead Time︰ 2DAYS

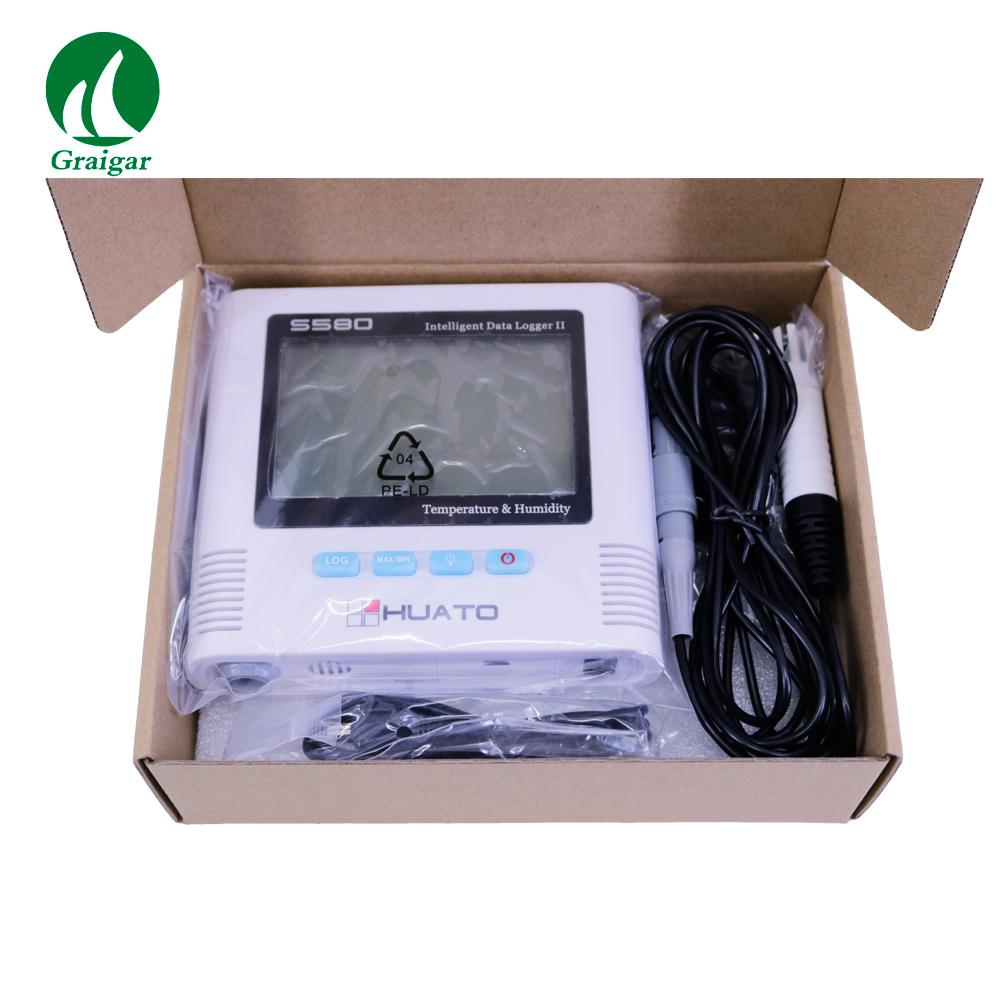

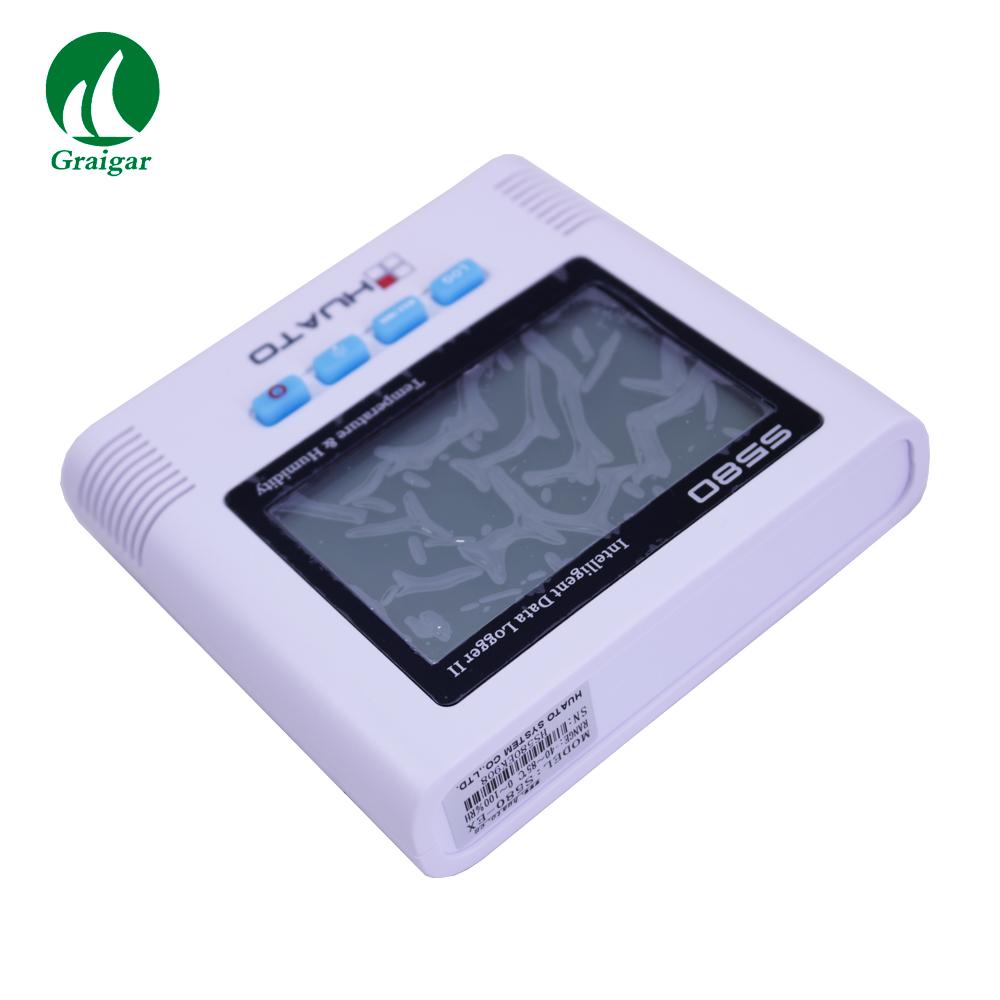

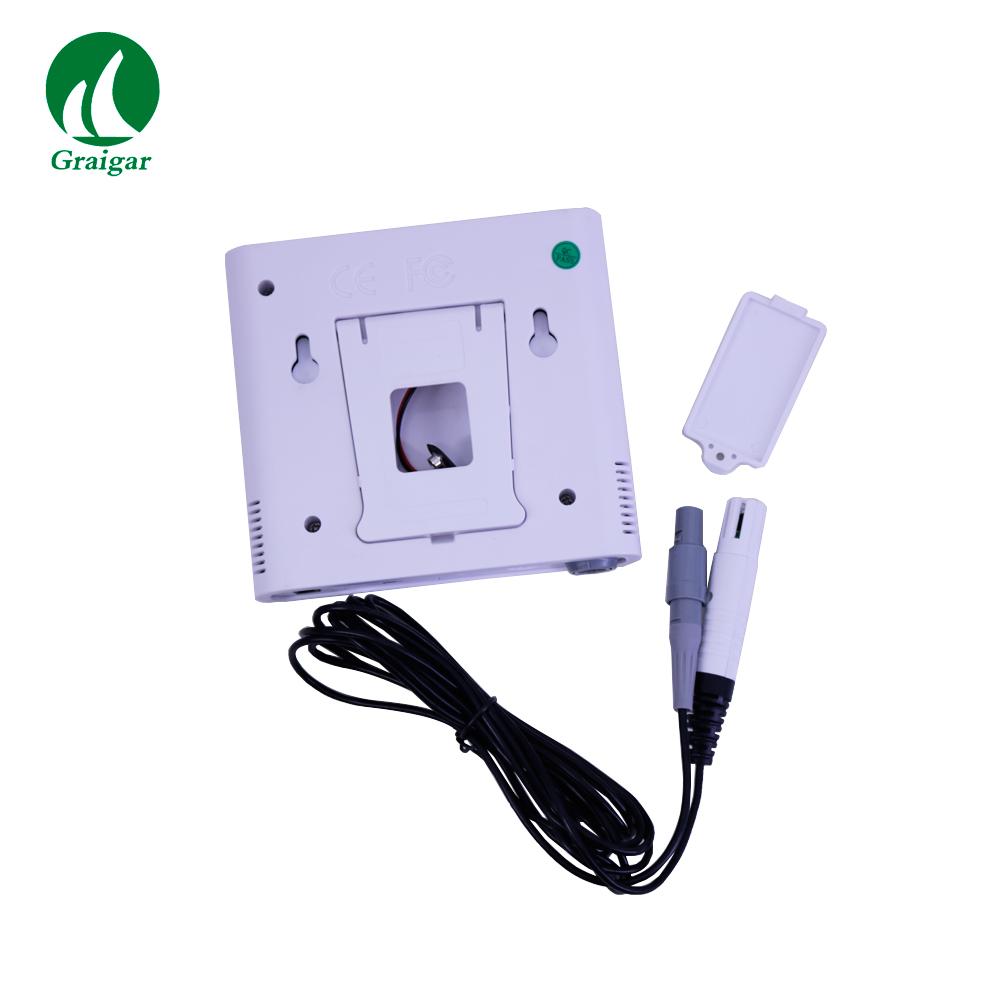

Product Image
